Product Description

Specification and Parameters:
Materials:plastic, steel, and tempered glass
Dimensions:Length:19.6cm Width:13.1cm Height:3.6cm
Unit:kg/lb
Maximum Range:90kg/198lb
Division:0.1kg/0.21lb

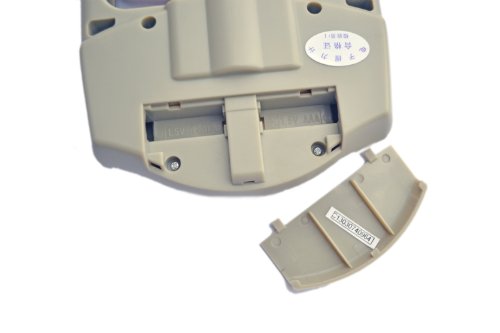

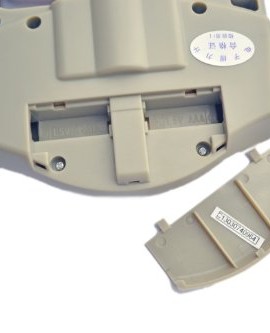

Power supply:2x 1.5v AAA batteries
Permissible error:+-0.5kg/1lb
The use of environment: Temperature:0-35℃
Relative Humidity：30-90℃

How to make use of?
1. First of all adjust the deal with gap before use to match your hand’s size by means of turning the knob.
2. Personal Information Setting
If the user wants to get his/her grip rating in line with their age&gender and record it,the user has to preset his/her personal information and get the User’s No. before measurement.

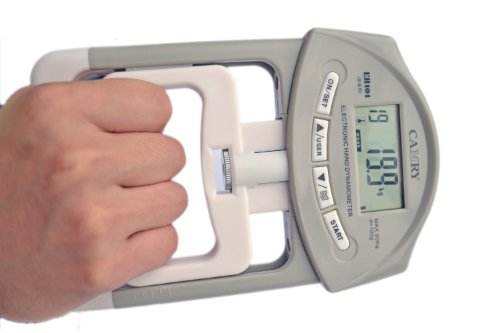

3. User Measurement
On the Standby State,push the USER button and the last time user’s information will show,and then enter into measurement state after 3 seconds.
All over measurement,LCD shows the information including No.,gender,real-time grip value and rating (Weak,Normal,Strong).
“HOLD”icon indicates the max value of this time test,push the ON/SET 3 seconds will turn off the dynamometer.
The difference to last time value and the latest value will show alternately at last.
4. Reset and Measure Again
5. Quick Measurement
Push Start button and do a quick measurement without personal information and the record cannot be stored.Push and hold ON/SET button 3 seconds or keep idle 20 seconds to turn off the dynamometer.
6. Data Stored
7. Record Retrieve
Push the “up and down” button to find out the users’ information including users’ No.,gender and latest record.

What’s in the box’

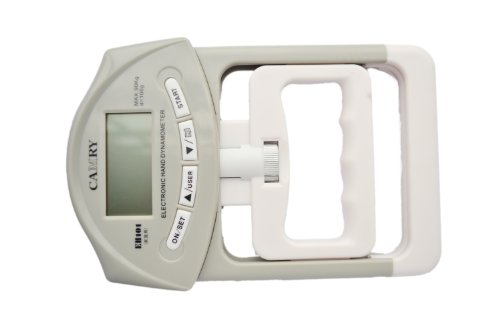

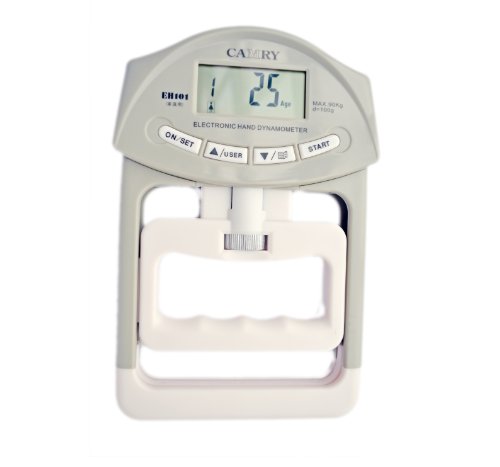

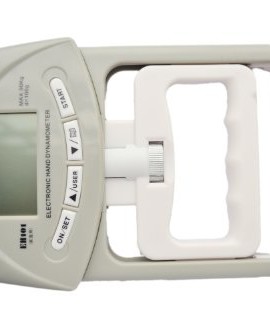

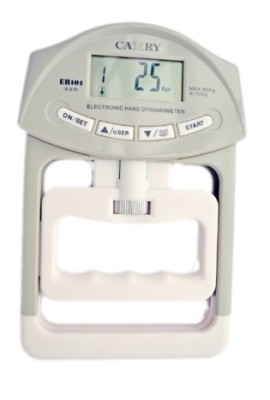

1x Electronic Dynamometer EH101
Capacity Range:90 KG / 200 lb
Display Grip Strength Level,Save Grip Strength Records
Assesses results in line with age and gender
Auto captures and displays maximum grip force
Saves and stores results for fast retrieval with up to 19 users
